Containers

Container MODULAR CONTAINERS

Containers offered by ICONTAINERS can be used either as stand-alone facilities or in combination. The configurations may come in various sizes and serve different purposes. A container configuration may incorporate, for instance, office, site, storage, sanitary and residential containers. Containers can be integrated and stacked in any configuration, according to the customer’s needs. We are open to all kinds of ideas and projects. What counts for us is a cost-effective solution and our customers’ satisfaction.

phone.: +48 531-241-672
phone.: +48 535-986-808
e-mail: [email protected]

Technical data

TECHNICAL DATA
DIMENSIONS– external: 6006 x 2430 x 2850 mm
– internal: 5750 x 2150 x 2500 mm
STRUCTURE– steel structure made of 4 mm thick steel sections according to EN 10025-2:2019 / EN 10025-2:2019 / EN 10051-10;
– corner posts firmly welded to the floor and roof structure;
– all coated with polyurethane paint (RAL 7016);
– lifting lugs for handling,
ROOF– 4 mm thick steel sections;
– corner reinforcements made of 4 mm metal sheet;
– sandwich panel with 100 mm polystyrene core, double laminated with 0.5 mm metal sheetheat transfer coefficient ‘U’ for BAAS-PANEL D roof panels (0.54 to 0.14) [W/m2K];fire classification according to PN-90/B-02851degree of fire spread: NROfire-resistance rating: RE30 for roof;
– roof finishing accessories of 0.5 mm sheet;
– sealing: 0.5 mm galvanized sheet;
– finishes: 0.5 mm coated sheet (RAL 9010);
WALLSY– 100 mm sandwich panel with a polystyrene core;
– exterior wall: 0.5 mm micro-corrugated sheet (RAL 9006);- interior wall: 0.5 mm smooth metal sheet (RAL 9010);
– perimeter trims of 0.5 mm metal sheet (RAL 9010);
– fire classification according to PN-90/B-02851degree of fire spread: NRO fire-resistance rating: E90 for walls, RE30 for roof;
FLOOR– a strip of Z-sections firmly welded together;
– insulated with 100 mm mineral wool (λD = 0.044 W/mK according to PN-EN 13162:2013-05), GUM Technical Approval: 68/322/71/2016;
– floor sealing with 1 mm galvanized metal sheet;
– floor base: 22 mm DURELIS p5 panel;
– 2.5 mm vinyl flooring with abrasion resistant coating;DECLARATION OF PERFORMANCE V434,EN ISO 10874 performance classification: 33-42; according to EN 14041:2004/AC:2006;
– skirting boards (RAL 9010);
DOORS– 200/80 cm external solid steel door (RAL 7016);
– 200/90 cm door with reinforced wood and steel structure with double lock, three bolts and three hinges (RAL 7016);
– internal solid doors (RAL 9010); Declaration of Conformity No. 92/02/2014/HP/KOM/DPO for steel doors Building Research Institute Technical Approval No. AT-15-3435/2014
WINDOWS– Ideal 4000 tilt and turn window (RAL)installation depth: 70 mm Uw coefficient ≤ 1.3 W/m2K; five-chamber profile;
– 120 x 120 cm Ideal 4000 tilt and turn window (RAL 7016)
– 100 x 100 cm Ideal 4000 tilt and turn window (RAL 7016)
– 80 x 100 cm Ideal 4000 tilt and turn window (RAL 7016)
– 53 x 56 cm Ideal 4000 tilt window (RAL 7016)
– serving window;-RAS137 adaptive external roller shutter(adjusted to the window size)
ELECTRICAL SYSTEM– 5x32A electrical connection
Declaration of Conformity No. 21/2019 RoHS Directive 2011/65/EU; Low Voltage Directive 2014/35/EU; Standards: PN-EN 60309- 1:2002/A 1:2009+A2:2013.03 and PN-EN 60309 02:2002/A1:2009+A2:2012;
– 12 module surface-mounted switchboardEC DECLARATION OF CONFORMITY No. 34/2011; No. 19/2012
– residual current and overcurrent protectionDeclaration of Conformity (in accordance with ISO/IEC 17050-1) No. 18/03/2017;Compliant with the standards: EN60898-1/03 + A1/04 + A11/05 + A12/08 + A13/12 ;Low Voltage Directive 2014/35/EU; RoHS Directive 2011/65/EU
– LED lamp;
– double hermetic (IP54) sockets Declaration of Conformity No. K-S/170/2010, Standard: PN-EN 60669-1:2006 PN-IEC 60884-1:2006 and
– IP54 single-pole switch
HEATING– 2000 W convection heater
– gravity ventilation
KITCHEN FACILITIES– base cabinets – 180 cm (80 cm sink cabinet, sink, 60 cm fridge + 40 cm cabinet with a drawer and a worktop);
– upper cabinets (80 cm + 60 cm + 40 cm);
– single-bowl inset sink with a Deante Tango drainer;
– under sink tankless water heater– 3.7 – 5.5 kW
SANITARY FACILITIES– Kerra C-clear freestanding toilet unit;
– Koło Idol washbasin with Ferro Rosa single-lever mixer;
– a shower enclosure with a shower tray / square shower tray with a curtain and a rain shower;
– BOSCH Tronic 2000 electric water heater – 18 kW;
– Roca Euret urinal with a drain valve
ACCESSORIES– 2.6 kW HAIER air conditioner with an auxiliary heating function;European legal acts:
Low Voltage Directive 2014/35/EU;
Electromagnetic Compatibility Directive 2014/30/EU;
ROHS: Directive 2011/65/EU of the European Parliament and of the Council on the restriction of certain hazardous substances in electrical and electronic equipment
WEEE: Directive 2012/19/EU of the European Parliament and of the Council on waste electrical and electronic equipment.

MODULAR CONTAINERS

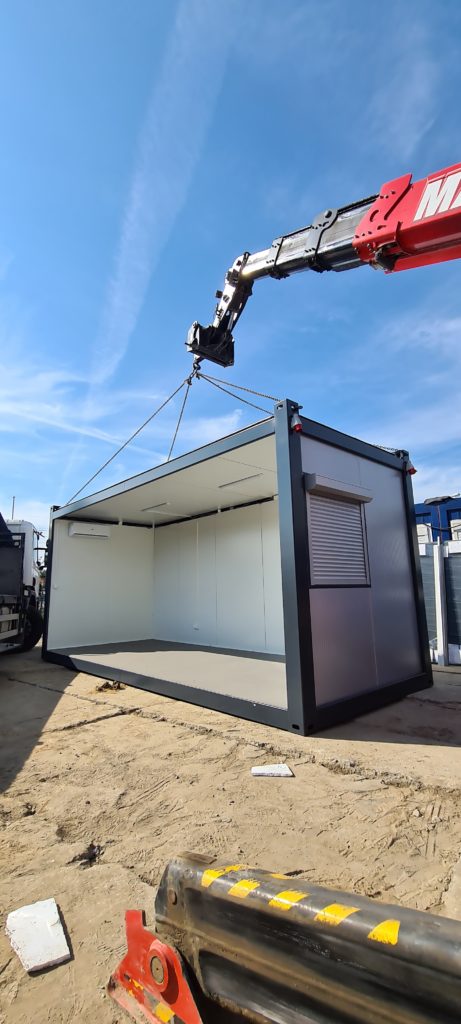

Gallery

Check what our containers look like
